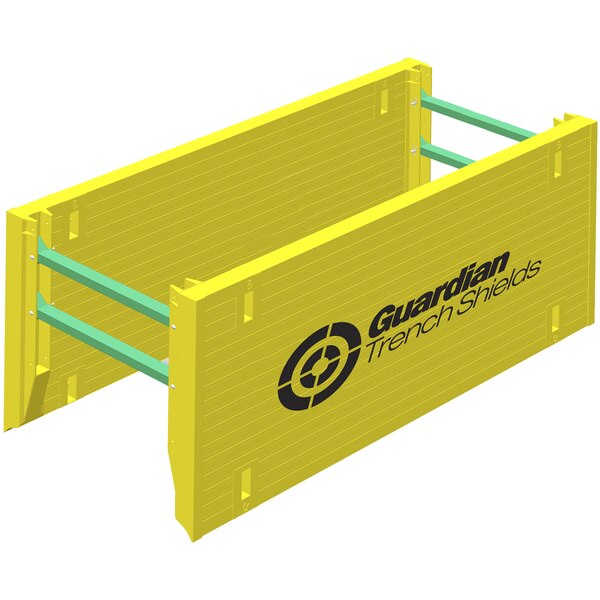

Guardian Aluminium Trench Shield – 5.0m × 2.4mH with Adjustable 0.8–1.2m Struts
5.0metre Length and 2.4metre Height
With full 2.4m height and 5.0m span, this shield covers larger excavated sections with fewer pieces. That means you can install a deeper box without stacking multiple units—saving time and reducing rigging complexity.
Adjustable Struts (0.8–1.2m) for Variable Widths
The adjustable struts allow the shield’s internal width to vary between 0.8 and 1.2m, and have an under-strut clearance of 1.35m offering flexibility for different trench profiles or service runs. You’re not forced into a fixed width—handy when pipes, cables or obstructions require quick adaptation.
High Load Rating (55kPa) & 150mm Wall Thickness
Engineered for heavy pressure, this shield handles demanding ground conditions—reducing risk of panel failure or deformation. On sites with high lateral loads or unstable soils, that translates to safer work and fewer surprises.
Stackable Panels with Inbuilt Lifting Points
The units are designed to stack on top of each other for use in a deeper trench and include lifting points for safe repositioning. Less time dragging gear around, more time on-site; ideal when you have multiple excavations over a long project.
Weight Per Set (kg): 1700, these are lighter than steel shields while still being just as strong.
Max Depth (m): 7.2
Recommended Machine Size (tonne): 11
Certificates: British and European Standards BS. EN 13331.1 and 13331.2, Australia & New Zealand Standard AS 4744.1-2000 & United States Standard, OSHA Sub Part P
Where This Shield Makes a Difference
- Major civil works: long trench runs, large service ducts—handles length and depth in one unit.
- Varying trench widths: width adjusts on the fly so you don’t need different sized boxes or extra inventory.
- Smaller machines or limited access sites: lightweight alloy and larger span mean one machine can install big shield sets, reducing machinery cost and footprint.
- Heavy-load or poor ground conditions: the high rating and strong build protect crews and equipment when working deep or in challenging soils.
