LITEguard Cemetery Aluminium Grave Shoring Shield 2.4m x 0.6m, Cutting Edge, 0.6-0.9m Struts, 600mm Legs

Code: 2470-0609
(0) No Reviews yet


A solution for all cemeteries for safe grave shoring!

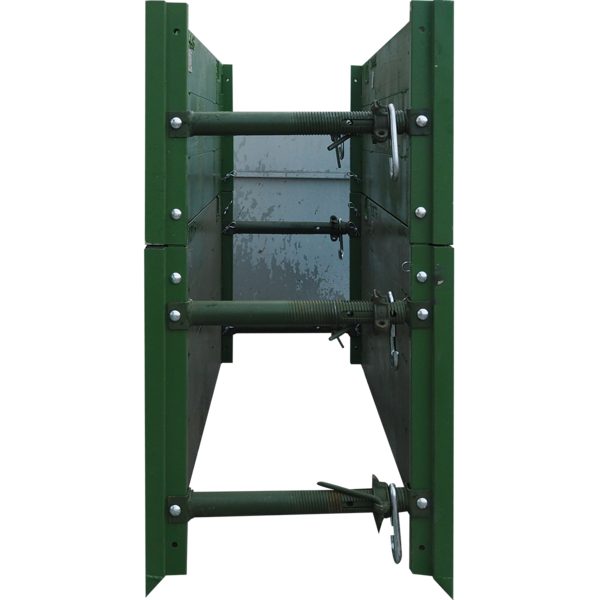

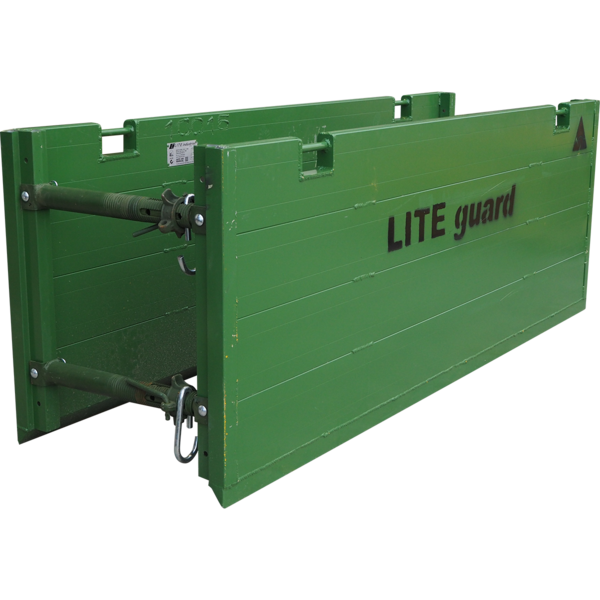

This lightweight aluminum shield is specifically designed for cemeteries to shore up graves before, during and after funeral services.

Legs are included but should only be used if the ground conditions are stable, to prevent premature soil movement.

Length (m): 2.4
Height (m): 0.6
Weight Per Set (kg): 90
Stackable: Yes
Inbuilt Lifting Points: Yes
Max Depth (m): 3.0
Rating (kPa): 30
Wall Thickness (mm): 45
Strut Sizes (m): 0.6 to 0.9
Recommended Machine Size (tonne): 1
Certificates: British and European Standards BS. EN 1331.142, Australia & New Zealand Standard AS 4744.1-2000 & United States Standard, 29CRF Part 1926 OSHA Sub Part P

Call during business hours for stock availability update on 0508 31 31 31 or email
