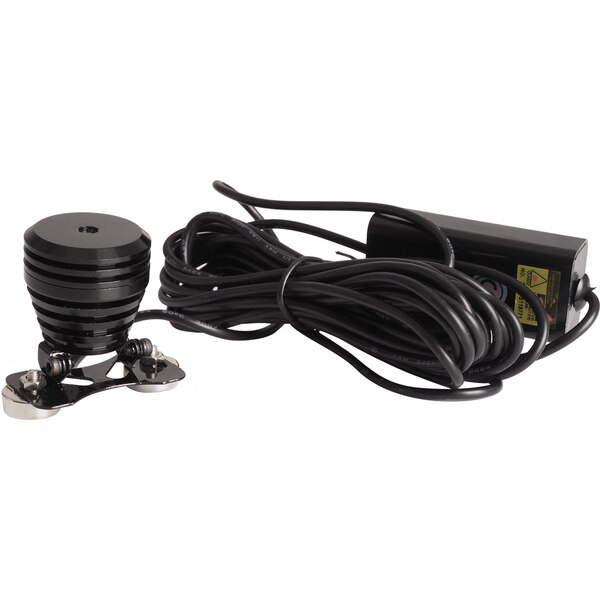

These laser sidelights are mounted on the forklifts guard or mast.
It has a 150 degree up/down mounting bracket which allows precise positioning of a thin red line beam on floor.
This creates a safety zone and a danger zone perimeter around each side of the forklift.
Operating Voltage: 9 - 80Vdc
Operating Current: 0.28A @ 13.5Vdc
Power Consumption: 200mW(Red)
Size: 29.7*29.7*28mm
IP Rating: IP67
Weight: 0.28kg
Housing: Die Cast Aluminium - Inside copper
Lens: Automotive Optical Grade, Hard-Coated Polycarbonate
Function: Alerting, Positioning

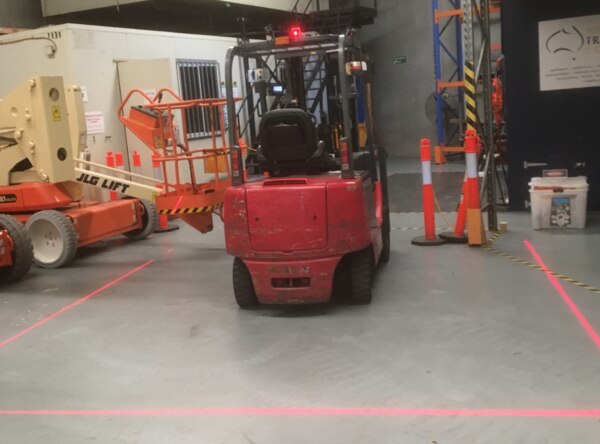

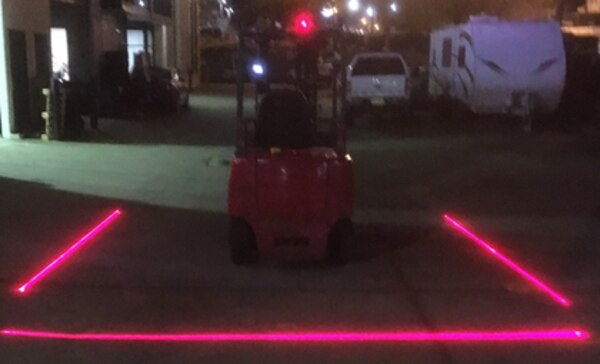

Picture shows 3 lights in use
