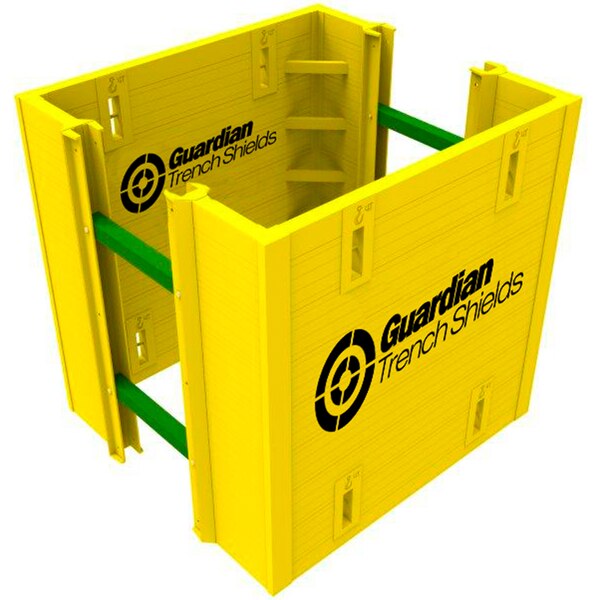

Need to install a manhole? Or simply an access shaft? Then look no further! Here's a simple, lightweight option!
Length (m): 3.0
Height (m): 2.4
Weight Per Set (kg): 1300
Stackable: Yes
Inbuilt Lifting Points: Yes
Max Depth (m): 7.2 (3 boxes deep)
Rating (kPa): 60
Wall Thickness (mm): 90
Strut Sizes (m): 0.8-1.2 adjustable but other sizes available (0.6-0.8, 1.2-2.0 & 1.4-2.4) however standard is 1.8 and interchangeable
Under Strut Clearance (m): 0.55
Recommended Machine Size (tonne): 6.4
Certificates: British and European Standards BS. EN 13331.1 and 13331.2, Australia & New Zealand Standard AS 4744.1-2000 & United States Standard, OSHA Sub Part P
