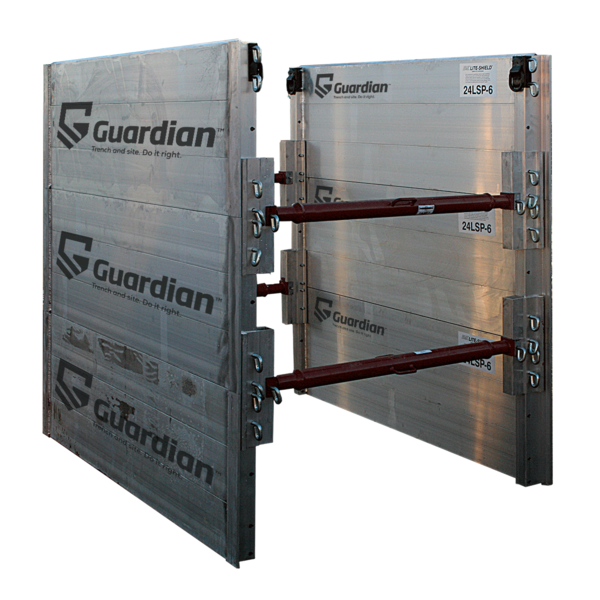

Guardian aluminium modular shield 1.8m x 1.8mH with 0.81-1.22m struts

Code: 2412-1818-0812
(0) No Reviews yet

Details

An aluminium modular shoring system which is extremely versatile and can be configured in various ways such as a trench shield, 3-sided box or a complete closed box.

This system can be easily assembled, dismantled and transported on a ute or a small trailer as the panels are lightweight and easy to handle.

Assembly is quick and easy by using gravity-activated pins, with no clips required.

The wall thickness is only 50mm, minimising excavation, backfilling and restoration costs.

The screw thread of spreader bars is shallow and coarse for easy cleaning and performance.

Extra components are available such as corner brackets, lifting eyes, struts and legs. Other panel sizes are also available.

This configuration is for a 1.8m long shield at 1.8m high with 0.8 to 1.2m adjustable struts.

Length (m): 1.8

Height (m): 1.8

Weight Per Set (kg): 301

Stackable: Yes

Inbuilt Lifting Points: No

Max Depth (m): 6.6

Rating (kPa): 57

Wall Thickness (mm): 50

Strut Sizes (m): 0.81 to 1.22 but other sizes available (0.61 to 0.81, 1.02 to 1.63, 1.3 to 2.18 & 2.05 to 2.93)

Under Strut Clearance (m): 0.26, 0.6, or 0.86

Recommended Machine Size (tonne): 2

Certificates: OSHA standard 29 CRF, Part 1926, Subpart P, Excavations

Out of stock in Christchurch
> Out of stock in Auckland
Call during business hours for stock availability update on 0508 31 31 31 or email sales@transquip.co.nz
