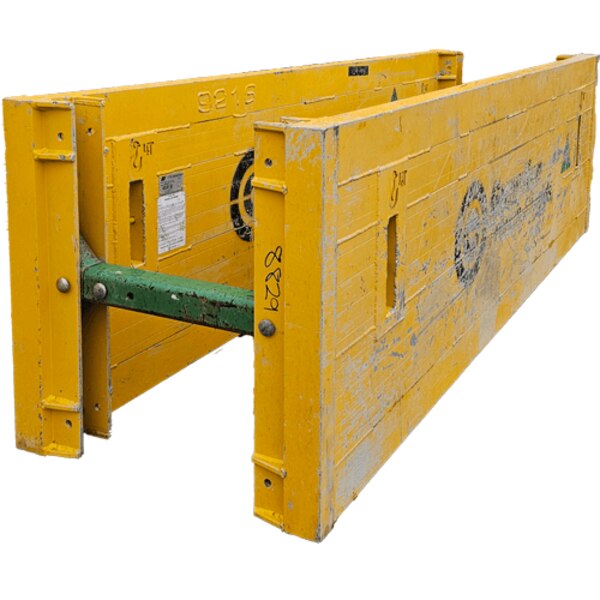

A great option when you need to go deeper and you already have a 3.6m shield. This fits on the top to create a deeper shield.
Length (m): 3.6
Height (m): 1.05
Weight Per Set (kg): 510
Stackable: Yes
Inbuilt Lifting Points: Yes
Max Depth (m): 7.2
Rating (kPa): 43
Wall Thickness (mm): 90
Strut Sizes (m): 1.0 rigid but other rigid sizes available (0.8, 1.2, 1.5, 2.0, 2.4, 3.0 & 3.5)
Under Strut Clearance (m): 0.47
Recommended Machine Size (tonne): 2.5
Certificates: British and European Standards BS. EN 13331.1 and 13331.2, Australia & New Zealand Standard AS 4744.1-2000 & United States Standard, OSHA Sub Part P
