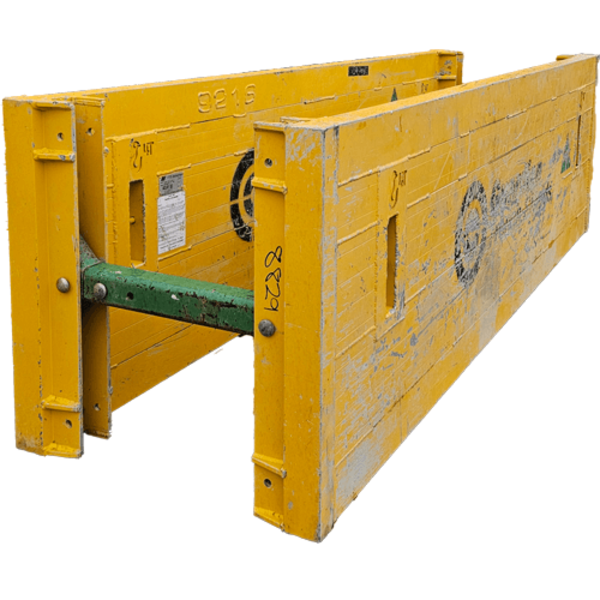

Guardian aluminium trench shield extension 3.6m x 1.05mH with adjustable struts 0.8-1.2m

Code: 2376-0812
(0) No Reviews yet


A great option when you need to go deeper and you already have a 3.6m shield. This fits on the top to create a deeper shield.

Length (m): 3.6

Height (m): 1.05

Weight Per Set (kg): 510

Stackable: Yes

Inbuilt Lifting Points: Yes

Max Depth (m): 7.2

Rating (kPa): 43

Wall Thickness (mm): 90

Strut Sizes (m): 0.8-1.2 adjustable but other sizes available (0.6-0.8, 1.2-2.0 & 1.4-2.4)

Under Strut Clearance (m): 0.47

Recommended Machine Size (tonne): 2.5

Certificates: British and European Standards BS. EN 13331.1 and 13331.2, Australia & New Zealand Standard AS 4744.1-2000 & United States Standard, OSHA Sub Part P.

Call during business hours for stock availability update on 0508 31 31 31 or email
