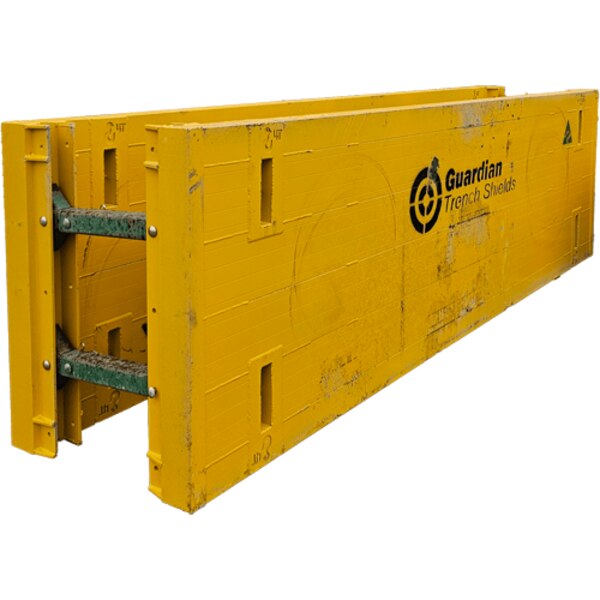

A great option when you need to go deeper and you already have a 5.0m shield. This fits on the top to create a deeper shield.
Length (m): 5.0
Height (m): 1.5
Weight Per Set (kg): 1200
Stackable: Yes
Inbuilt Lifting Points: Yes
Max Depth (m): 7.2
Rating (kPa): 55
Wall Thickness (mm): 150
Strut Sizes (m): 0.8-1.2 adjustable but other sizes available (0.6-0.8, 1.2-2.0 & 1.4-2.4)
Under Strut Clearance (m): 0.47
Recommended Machine Size (tonne): 7
Certificates: British and European Standards BS. EN 13331.1 and 13331.2, Australia & New Zealand Standard AS 4744.1-2000 & United States Standard, OSHA Sub Part P
